3-Jaws Punch Former (BIG)
► PF600 is suitable for mass production, workpiece with round shapes can be precisely & rapidly clamped.
► Further jaw attachment can clamp workpeice with larger diameters.

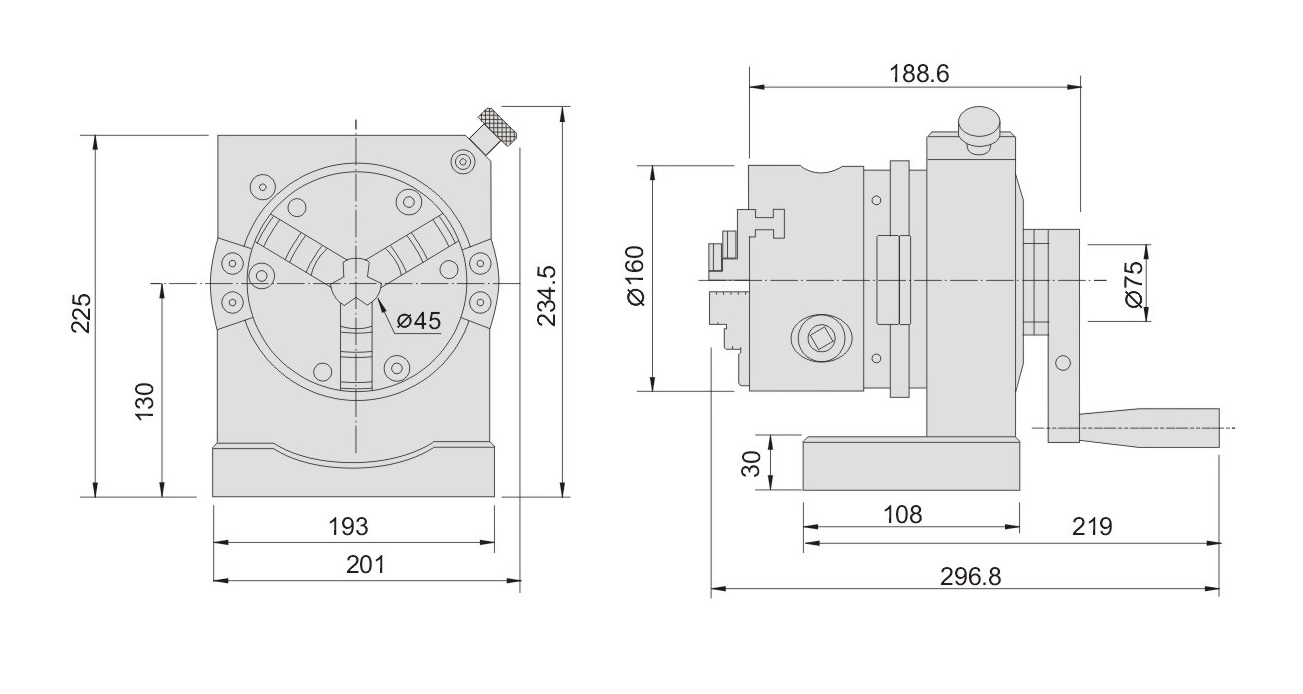

Main parameters:
Center height …………………………………………………130mm
Indexer tooth q'ty & accuracy………………24、15°± 10"
Through hole diameters ………………………………Ø 45mm
Hole dia. of 3-Jaw Chuck………………………………Ø 45mm
3-Jaw chuck repeat accuracy………………………0.015mm
Min. clamping range: Outer dia…………Ø 4mm, Inner dia…………Ø 48mm
Max. clamping range: Outer dia…..……Ø 160mm, Inner dia.……Ø 150mm
