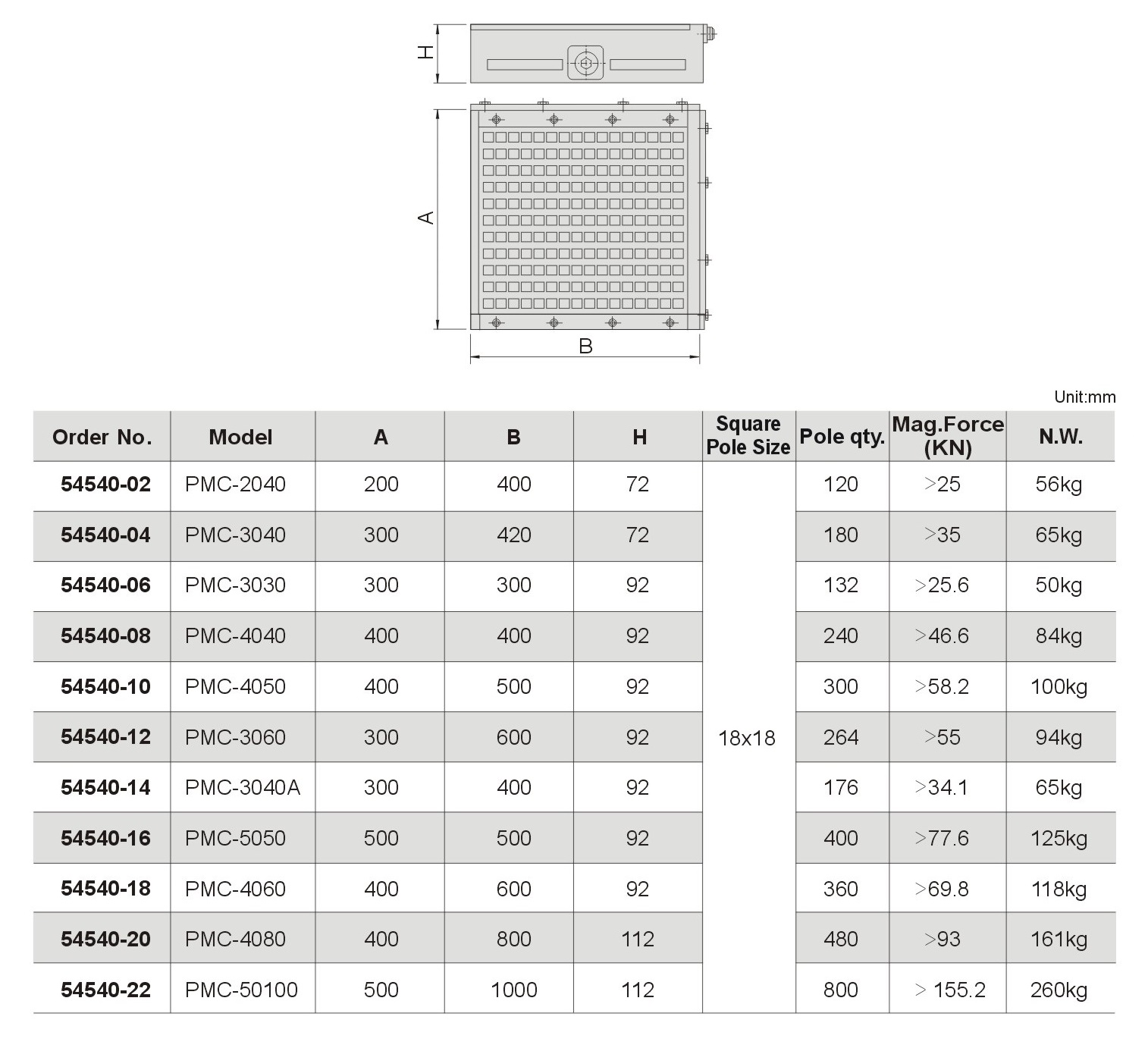

Powerful Permanent Magnetic Chuck(GRID)
► Fulfill the high precision and efficiency required by machining center, CNC milling machines
► With superb loading efficiency which saves almost 80% time, and stable magnetic force can even hold workpiece which larger than itself and realise 5-sided processing
► Square poles combined with density and powerful force, high precision workpieces can be achieved while inner stress during processing.
► Powerful attraction can hold at least thickness 2mm above for processing.
► Environmentally safe and simple operation.
► Scope of Use: The workpiece to be machined must have a length and width greater than 120×120mm, and the height of the workpiece must not exceed half of its width.
► With superb loading efficiency which saves almost 80% time, and stable magnetic force can even hold workpiece which larger than itself and realise 5-sided processing
► Square poles combined with density and powerful force, high precision workpieces can be achieved while inner stress during processing.
► Powerful attraction can hold at least thickness 2mm above for processing.
► Environmentally safe and simple operation.
► Scope of Use: The workpiece to be machined must have a length and width greater than 120×120mm, and the height of the workpiece must not exceed half of its width.
