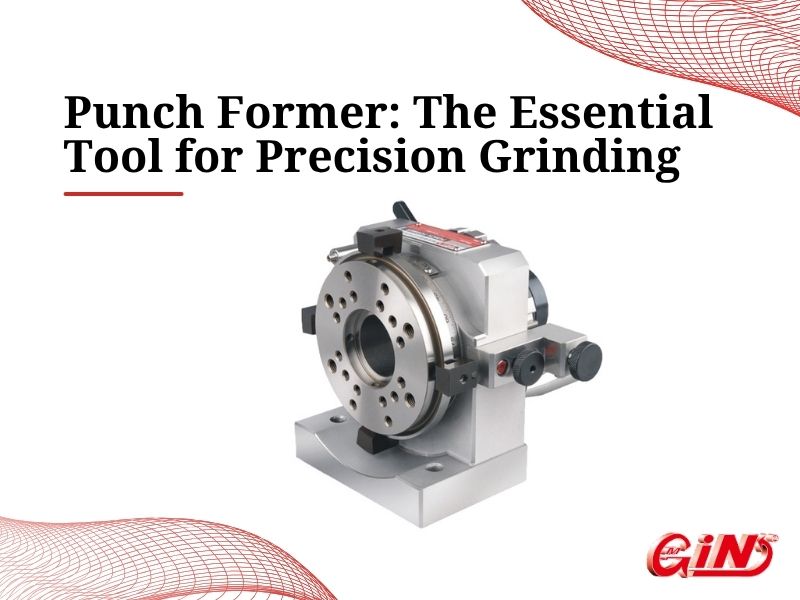

Punch Former: The Essential Tool for Precision Grinding

In precision manufacturing and toolmaking, accuracy is everything. Whether you are shaping punches for stamping tools or regrinding used components, the ability to maintain consistent profiles, angles, and dimensions is critical. That’s where the punch former comes into play—an essential fixture for grinding cylindrical and irregular parts with high precision.

With over 35 years of experience in developing precision machine tool accessories, GIN CHAN Precision Industrial Co., Ltd. has seen firsthand how punch formers can transform grinding operations. This article draws on our technical expertise to explain what a punch former is, why it’s indispensable in modern machining, and how our punch former solutions support manufacturers in achieving superior accuracy and repeatability.

What Is a Punch Former?

A punch former is a mechanical fixture used on surface grinders, tool grinders, or CNC grinding machines to hold and precisely position punches, dies, and other small workpieces for grinding. It enables operators to achieve high repeatability when forming complex geometries such as tapers, radii, bevels, and step angles.

While often seen as a support accessory, a high-quality punch former is, in reality, a precision instrument. Its function goes beyond holding the workpiece—it allows complete control over rotation, angular alignment, and concentricity, which directly impacts tool life, surface quality, and dimensional accuracy.

Key Features of a Punch Former

1. High Accuracy and Repeatability

Punch formers are designed with micron-level precision. The rotational accuracy, typically within a few arc seconds, ensures uniformity when multiple punches or tools must be produced to the same specification.

2. 360° Indexing and Fine Adjustment

With a fully rotational base, many punch formers offer indexed rotation in precise increments (e.g., 1°, 5°, or even finer). Some models include vernier scales or micrometer adjustments, enabling fine-tuning without removing the workpiece.

3. Stable and Versatile Clamping Mechanism

Punch formers can hold a variety of shapes—round, square, hexagonal, or irregular—via a flexible clamping system. V-blocks, collets, or custom jaw adapters may be used depending on the component geometry.

4. Adjustable Tilt and Angle Plates

Advanced models feature tilting plates that can be locked at specific angles, ideal for creating chamfers or compound angles on punches. This makes the punch former indispensable for complex profile grinding.

5. Durable and Vibration-Resistant Construction

To ensure stability during grinding, punch formers are typically constructed using hardened tool steel and precision-ground components. This durability ensures long service life even under heavy use.

6. Machine Compatibility

Punch formers can be mounted on manual surface grinders, tool & cutter grinders, and even integrated into automated CNC grinding setups. Their compact design allows them to be easily repositioned or used in various orientations.

Typical Applications of Punch Formers

• Tool and Die Manufacturing: Shaping and sharpening punches used in progressive dies or compound dies.
• Connector & Electronic Component Production: Grinding tiny, intricate punch features used in pin and socket manufacturing.
• Medical Device Fabrication: Creating highly precise punches used in surgical tool dies.
• Regrinding and Maintenance: Restoring worn or dulled punches to original geometry, saving on tool replacement costs.
• Mold Industry: Grinding ejector pins, mold cores, and inserts with fine tolerances.

Advantages in Modern Manufacturing

• Reduces Setup Time: With pre-aligned clamps and indexed rotation, operators can quickly change workpieces while maintaining positional accuracy.
• Enhances Tool Life: By allowing precise resharpening, tools can be maintained in optimal condition for longer use.
• Improves Quality Control: Precision fixtures reduce human error, leading to more consistent and predictable grinding outcomes.
• Supports Complex Grinding Operations: Features such as angle tilting and fine indexing enable the execution of advanced geometries without CNC intervention.

What to Consider When Choosing a Punch Former

• Grinding Requirements: Consider the level of complexity, size, and repeatability required for your applications.
• Machine Compatibility: Ensure the punch former can be mounted on your grinder's worktable with proper alignment.
• Adjustment Features: Look for models that support angular adjustment and micrometric control if your workpieces involve compound features.
• Workpiece Variety: If you often grind different shapes, a versatile clamping system is essential.

Explore GIN CHAN’s Precision Punch Formers

As a leading manufacturer of machine tool accessories since 1988, GIN CHAN Precision Industrial Co., Ltd. offers a refined line of punch formers designed for exceptional grinding performance. Our models are engineered with robust construction, high-accuracy indexing, and versatile clamping systems to support a wide range of applications.

GIN CHAN punch formers are built with precision-ground hardened components, ensuring long-lasting durability and minimal vibration. Designed for seamless compatibility with surface grinders and tool grinders, they allow machinists to produce complex punch profiles with confidence.

Whether you're a mold maker, toolroom technician, or precision parts manufacturer, GIN CHAN’s punch formers can help streamline your workflow and improve grinding outcomes.

☛ Explore our full punch former lineup here:
https://www.gin-chan.com/en-US/pfilter1_1_2-punch-formers
